Home /Products/Vacuum Solenoid Valve/Industrial use SMC ITV 1030 pressure regulator proportional valve for machine vacuum pressure regulator solenoid valve

Industrial use SMC ITV 1030 pressure regulator proportional valve for machine vacuum pressure regulator solenoid valve

2 Pieces
MOQ
$95.00(2 - 10 Pieces) $92.00(11 - 50 Pieces) $85.00(>=51 Pieces)
Price
Industrial use SMC ITV 1030 pressure regulator proportional valve for machine vacuum pressure regulator solenoid valve
Features Gallery Product Description Request A Quote
Features
Specifications
Condition: New
Warranty: 1 Year
Applicable Industries: Manufacturing Plant, Food & Beverage Factory, Retail, Construction Works , Energy & Mining, Food Beverage Factory, Pneumatic, Construction Works
Showroom Location: None
Video Outgoing-inspection: Not Available
Machinery Test Report: Not Available
Marketing Type: Hot Product 2020
Type: Valves
Material: Carton,box
Product Name: Electronic Vacuum Regulator
Body Material: Aluminum Alloy
Working Medium: Air
Acting Type: Direct-Acting Piston Structure
Voltage: DC12V/24V
Application: Industrial Usage, Water Industrial Usage, Household Usage
Preotection Class: IP65
Standard: DIN
Orifice: 7.3MM
After Warranty Service: Online Support
Local Service Location: None
Basic Infomation
Payment & Shipping Terms
Packaging Details: 1. VPC logo Standard cartons 2.White Carton box without logo 3.Customer's designed packages 4.Plastic pallet and wooden pallet is available
Supply Ability: 1000 Piece/Pieces per Day
Product Description

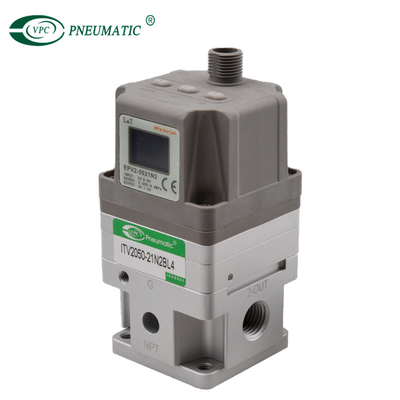

SMC ITV 1030 pressure regulator proportional valve for machine Vacuum pressure regulator solenoid valve
The electric proportional valve controls the gas pressure through the electric signal, which can realize the continuous and stepless adjustment of the gas pressure, and can realize the remote control and program control.

Feature

1) electric proportional mode, realizing non-pole control of outlet pressure. 2) it can realize remote control and program control. 3) compared with intermittent control, the system is simplified and the components are greatly reduced. 4) compared with hydraulic proportional valve, small volume, light weight, compact structure, lightweight, low cost, but the response speed is much slower than the hydraulic system, more sensitive to load changes. 5) low power consumption: less than 4W (communication form). 6) no fire, no pollution.It is less affected by temperature change.
Item
Electric proportional Regulator Valve
Power Consumption
1.1 W
Connection Size
Air Treatment1/4" NPT
Temp. Range (F)
32 to 122 Degrees F
Max. Incoming Pressure
Air Treatment45 psi
Accuracy (%)
'+/-0.3%
Max. Flow
Air Treatment35 cfm
Enclosure
IP65
Adjustment Range
Air Treatment0 to 30 psi
Indicator
Integral LED
Input Voltage
Air Treatment24VDC
Height (In.)
5.55
Input Signal
0-10V or 4-20 mA
Width (In.)
2.25
Ordering Code 4V Series Solenoid Valve
ITV 3 0 10 - 01 □ 2 □ S □ - Q
ITV→Type Code
3→Model
1:1000 2:2000 3:3000 1→Pressure range
1:0.1MPa 3:0.5MPa 5:0.9MPa
0→Power supply voltage
0:24VDC 1:12 to 15VDC
0→Input signal
0:Current 4 to 20 mA (Sink type)
1:Current 0 to 20 mA (Sink type) 2:Voltage 0 to 5 VDC
3:Voltage 0 to 10 VDC
4*:Voltage 0 to 10 VDC *Option
1→Monitor output
0*:None(for preset input)
1:Analog output 1 to 5V DC
2*:Switch output/NPN output
3*:Switch output/PNP output
4*:Analog output 4 to mA (Sink type)
*Option
□→Thread type
-:Rc N*:NPT
T*:NPTF F*:G
Q→ CE compliance
2→Port size
1:1/8(1000 type)
2:1/4(1000,2000,3000 type)
3:3/8(2000,3000 type)
4:1/2(3000 type)
s→Cable connector type
S:Straight type 3 m
L:Right angle type 3m
N:Without cable connector
□→Pressure display unit
-:MPa 2:kgf/cm2
3:bar 4:PSI
5:kPa
